Airman PDS175s Air Compressor
Description
Specifications
SKU: 20
| Rental Options | Weekly | Monthly |
1. Introduction
-
The Airman PDS175s is a diesel-powered air compressor designed for heavy-duty industrial and construction applications.
-
It delivers high airflow (175 CFM) and operates at 7 kgf/cm² pressure, making it ideal for pneumatic tools, sandblasting, and drilling.
2. Key Features
-
Powerful Engine: Isuzu C240 diesel (4-cycle, water-cooled).
-
High Air Delivery: 175 CFM (5.0 m³/min) for continuous operation.
-
Robust Build: Heavy-duty construction with 950 kg operating weight.
-
Multiple Outlets: Three 3/4" air outlets for versatile use.
3. Applications
-
Construction sites
-
Mining & quarrying
-
Sandblasting & painting
-
Industrial maintenance

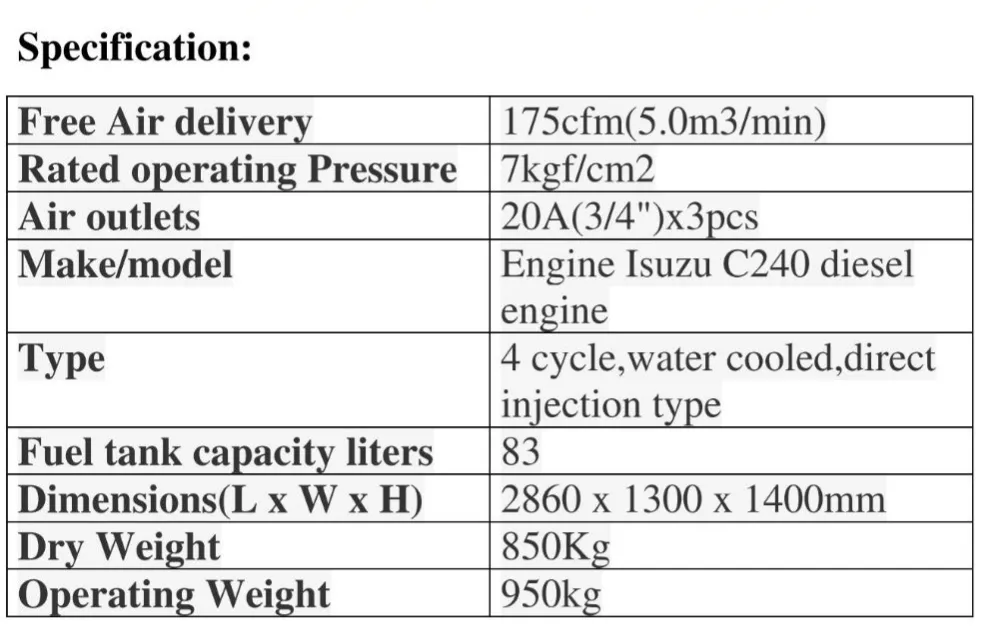

| Category | Specification |
|---|---|
| Air Delivery | 175 CFM (5.0 m³/min) |
| Operating Pressure | 7 kgf/cm² (≈100 psi) |
| Air Outlets | 3 × 3/4" (20A) |
| Engine Model | Isuzu C240 (Diesel) |
| Engine Type | 4-cycle, water-cooled, direct injection |
| Fuel Tank Capacity | 83 liters |
| Dimensions (L×W×H) | 2860 × 1300 × 1400 mm |
| Dry Weight | 850 kg |
| Operating Weight | 950 kg |
