MC-010J2 Piling Machine
1. Product Overview
-
Purpose: Portable post driving for fences, railings, and orchard supports
-
Key Features:
-
High-Impact Energy: 30-55J blows for efficient post driving
-
Versatile Piling: Handles timber, concrete, and steel posts (60-80mm diameter)
-
Ergonomic Design: Non-slip handle + 18kg lightweight body
-
Fuel Efficient: 0.6L/h consumption with 1.3L tank
-

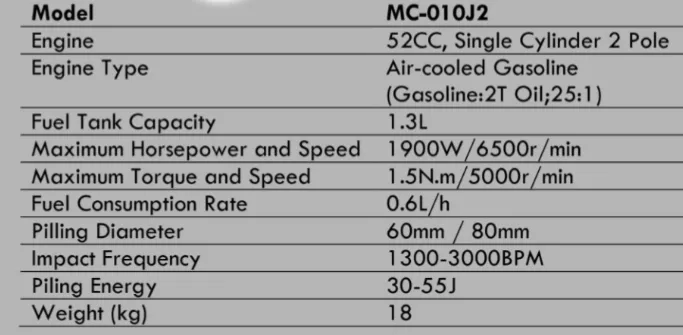

2. Technical Specifications
| Parameter | Specification | User Benefit |
|---|---|---|
| Engine | 52CC 2-Stroke Gasoline | Simple maintenance, no electrical needs |
| Power | 1900W @ 6500 RPM | Equivalent to 2.5HP |
| Impact Rate | 1300-3000 BPM | Adjustable for different soil conditions |
| Max Piling Dia. | 80mm | Fits standard fence posts |
| Weight | 18kg | One-person operation |
| Fuel Mix | 25:1 (Gas:Oil) | Standard 2-stroke mixture |
3. Feature Breakdown
A. Impact Technology
-
Variable BPM: Low speed (1300 BPM) for hard soil, high speed (3000 BPM) for soft ground
-
Anti-Vibration Handle: Reduces operator fatigue
B. Safety Features
-
Quick-Stop Switch: Immediate engine cutoff
-
Spark Arrestor: Prevents fire hazards in dry conditions
C. Multi-Material Compatibility
-
Timber posts (treated/untreated)
-
Concrete fence posts
-
Steel H-beams
4. Applications
-
Agricultural Fencing: Ranch boundaries, livestock enclosures
-
Vineyard/Orchard: Trellis system installation
-
Construction: Temporary safety railings
-
Landscaping: Signpost installation
