Screed Pump SPZ-500
Brand:
Toku
Description
Specifications
SKU: 10
| Rental Options | Weekly | Monthly |

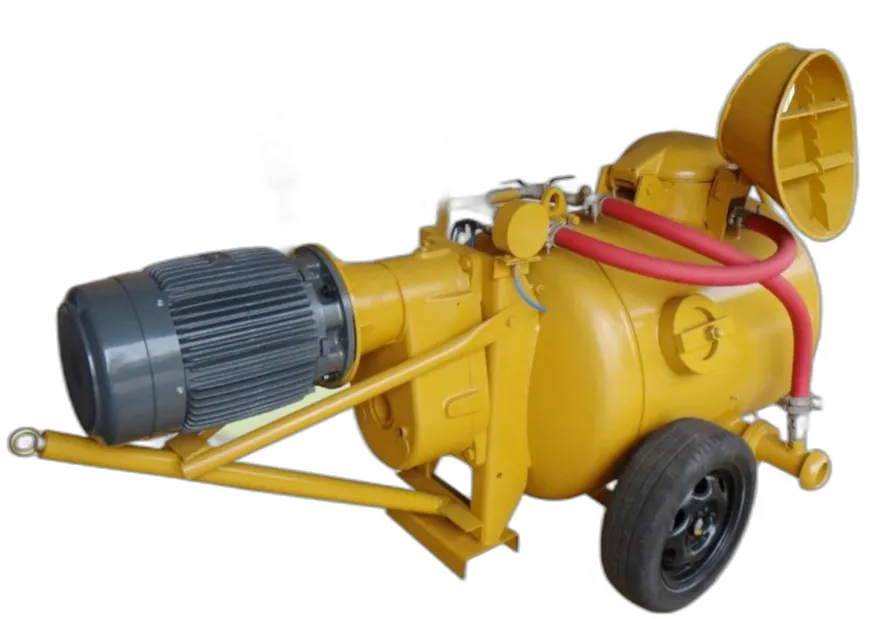

SPZ-500 Screed Pump. High-Efficiency Delivery for Floor Screed & Concrete
-
Capacity: 500L mixing vessel, output up to 4m³/h.
-
Power: 25 HP TECO Electric Motor (415V, 3-phase).
-

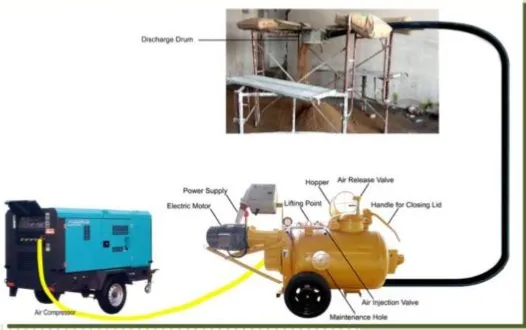

Pumping: Up to 40m height with Airman PDS 390 Compressor.
-
Safety: Includes safety switch, operational switch, and safety valve.
-
Convenience: Service hole for easy discharge and cleaning.
Best For: Delivering floor screed, sand, and fine concrete (up to 25mm aggregate).

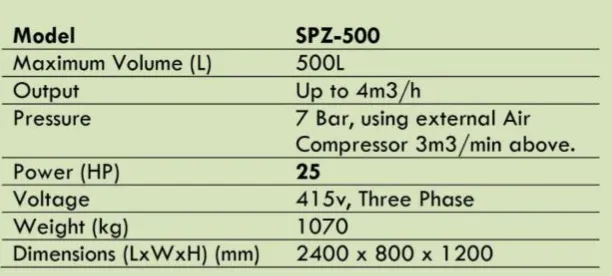

| Category | Details |
|---|---|
| Model | SPZ-500 |
| Max Volume | 500L |
| Output | 4m³/h |
| Pressure | 7 Bar (requires external compressor: ≥3m³/min) |
| Power | 25 HP (TECO Electric Motor) |
| Voltage | 415V, Three Phase |
| Weight | 1070kg |
| Dimensions (L×W×H) | 2400 × 800 × 1200mm |
| Pump Height | Up to 40m (with Airman PDS 390 Compressor) |
-
Robust Design: Heavy-duty construction for continuous operation.
-
User-Friendly: Safety valves and switches for operator convenience.
-
Versatile: Handles screed, sand, and fine concrete efficiently.
