TBS-900M Heavy-Duty Masonry Saw
Specifications
SKU: 20
The TBS-900M is a high-performance masonry saw designed for demanding construction and stone-cutting applications. With a 36" (900mm) blade and 10HP motor, it delivers powerful, precise cuts for professional use.
| Feature | Benefit |
|---|---|
| Heavy-duty frame with 4 wheels (2 lockable) | Easy mobility on job sites and stability during operation |
| Graduated scale | Ensures repeatable cutting depth for precision work |
| Easy-access blade & quick-change system | Reduces downtime for blade replacements |
| Balancing spring & strong locking structure | Enhances cutting accuracy and safety |
| Separated water tank | Improved cooling and dust control for blade longevity |
| Forward-backward & rise-decline hand-wheels | Full control over material feeding and cutting adjustments |

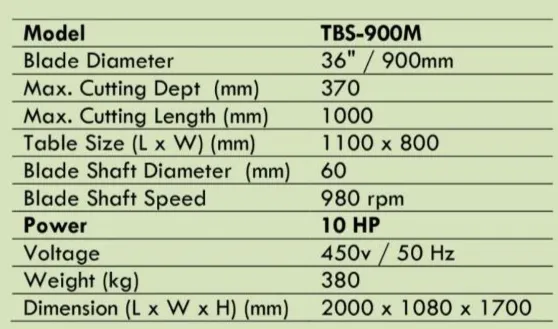

1. Cutting Capacity
-
Blade Diameter: 36" (900mm)
-
Max Cutting Depth: 370mm
-
Max Cutting Length: 1000mm
2. Power & Performance
-
Motor Power: 10 HP (7.5kW)
-
Voltage: 450V / 50Hz
-
Blade Speed: 980 RPM
-
Blade Shaft Diameter: 60mm (heavy-duty stability)
3. Worktable & Dimensions
-
Table Size: 1100mm (L) × 800mm (W)
-
Machine Dimensions (L×W×H): 2000 × 1080 × 1700mm
-
Weight: 380kg (robust construction)

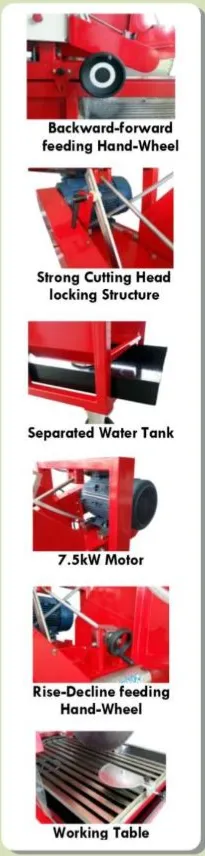

4. Operational Features
-
Forward-backward feeding hand-wheel – Smooth material handling
-
Rise-decline adjustment – Precise depth control
-
Separate water tank – Efficient cooling and dust suppression
✔ Heavy-duty masonry & stone cutting
✔ Construction sites requiring deep & long cuts
✔ Professional workshops with high-precision demands
