THP-6 Hydraulic Submersible Pump + HPP-F3L912 Power Pack
Brand:
Toku
Description
Specifications
SKU: 20
| Rental Options | Weekly | Monthly |
-

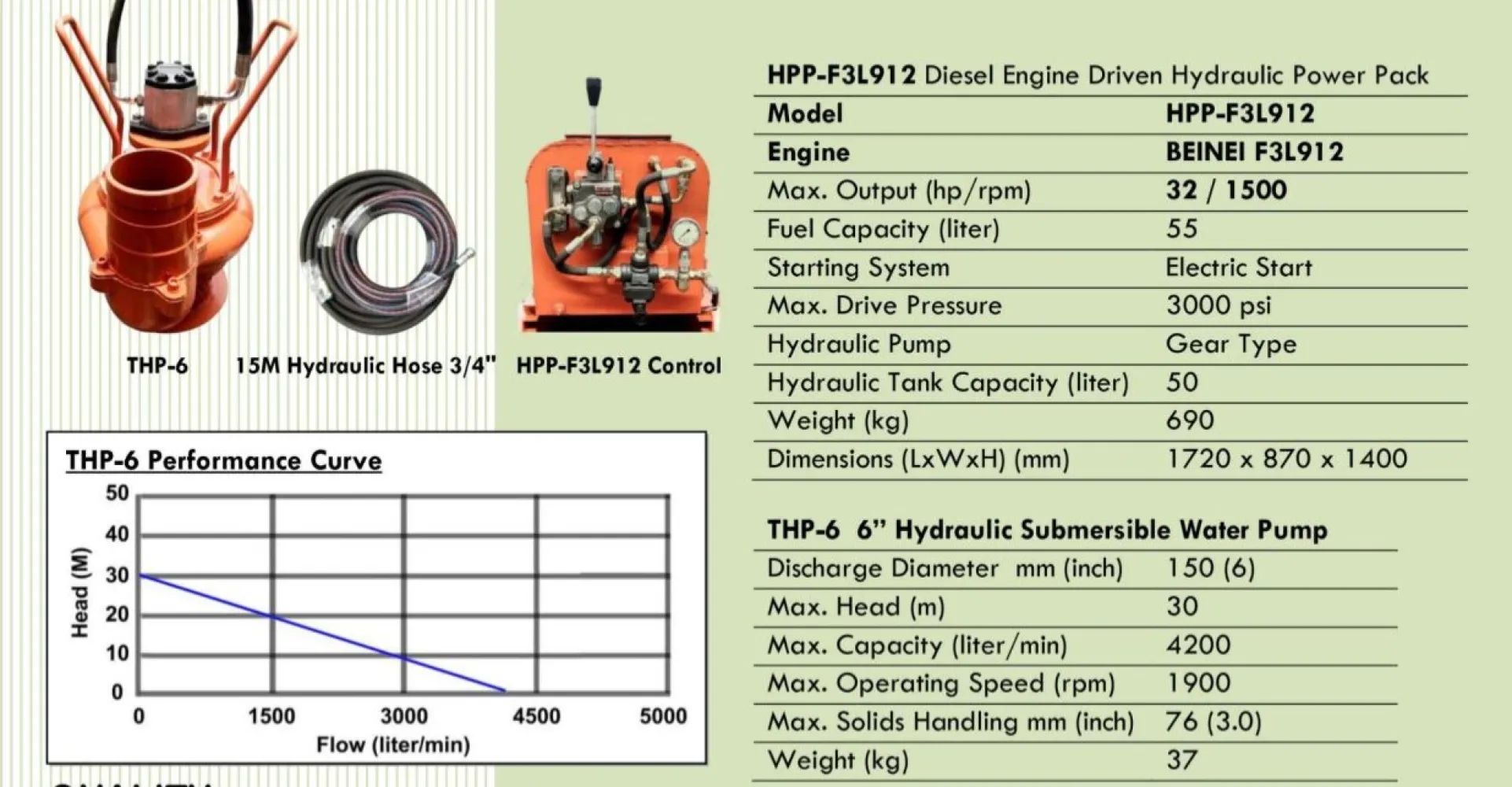

Model: THP-6 (Pump) + HPP-F3L912 (Power Pack)
-
Type: Diesel-engine-driven hydraulic submersible water pump system.
-
Key Feature: Compact, self-contained unit with high flow and large solids handling.
| Parameter | Specification |
|---|---|
| Discharge Diameter | 150 mm (6") |
| Max. Head | 30 meters |
| Max. Flow Rate | 4200 liters/min |
| Max. Speed | 1900 rpm |
| Solids Handling | 76 mm (3") diameter |
| Weight | 37 kg |
| Parameter | Specification |
|---|---|
| Engine | BEINEI F31912 |
| Max. Output | 32 hp @ 1500 rpm |
| Fuel Capacity | 55 liters |
| Hydraulic Pressure | 3000 psi |
| Hydraulic Tank Capacity | 50 liters |
| Weight | 690 kg |
| Dimensions (L×W×H) | 1720 × 870 × 1400 mm |
-
Simple Operation: Single on/off handle with pressure relief.
-
High Flow: Up to 4200 liters/min.
-
Solids Handling: Passes solids up to 3" diameter.
-
Hydraulic System: Open-loop design with oil filter.
-
Hose Flexibility: 15m standard hose (extendable to 30m).
-
Flow Range: 0–5000 liters/min.
-
Head Range: 0–50 meters (max 30m for THP-6).
